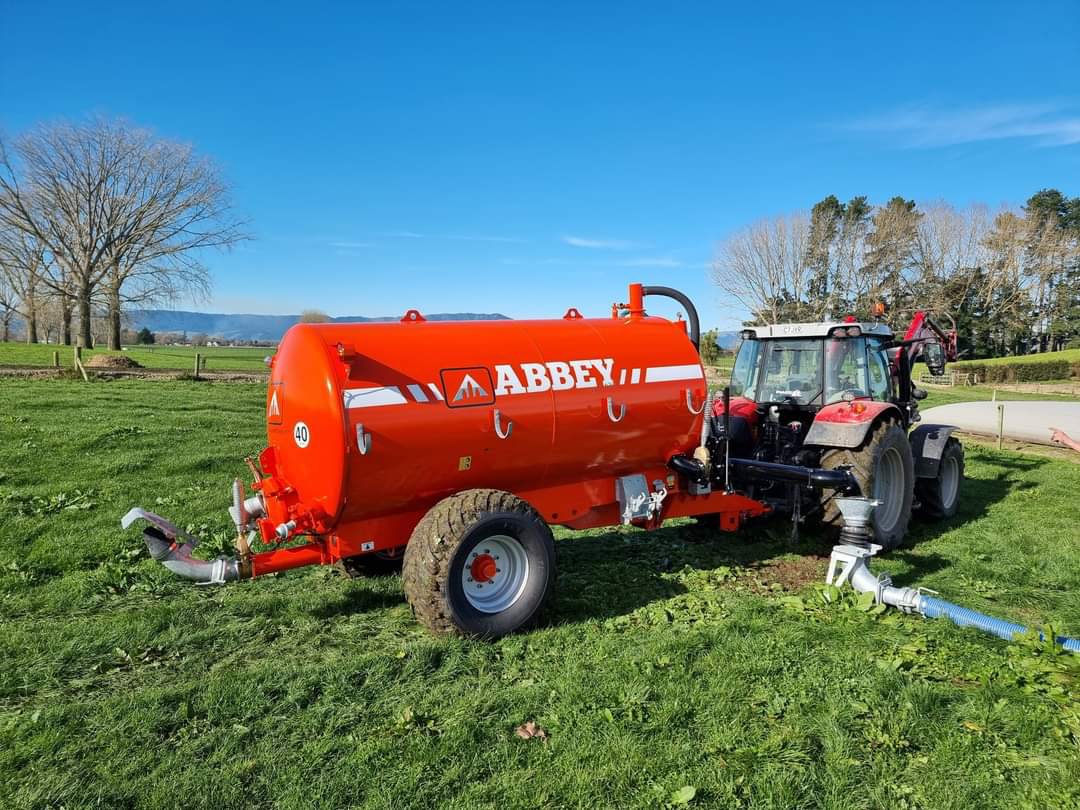

Super Sprung Drawbar Tankers

Enhanced Comfort, Superior Performance

Discover the unmatched towing comfort of Abbey Machinery’s Super Sprung Drawbar Tankers. Our unique parabolic weight-sensing multi-leaf spring system ensures a smoother ride across any terrain, reducing stress on both tractor and tanker. Available in capacities from 7,020L to 9,120L, these tankers combine the reliability of our standard range with advanced comfort features, making them ideal for both road and field work. Experience the difference in your daily operations with our innovative design that sets new standards in agricultural efficiency and comfort.

Technical Specification

1600 Super Sprung Drawbar Tanker

Model	1600SD
Approx. Capacity (gl)	1600
Litre Capacity (L)	7020
Dished End Size (inch)	60
Barrel Length (m)	3.66
Overall Width (mm)	2530
Approx. Overall Height (mm) (18” hook)	2870
Overall Length Without Splash Plate (mm)	6200
Pump Capacity (L/min)	9000
Standard Hose Length (m)	4.58
Back Door Size (inch)	20
Unladen Weight (kg)	2400
Wheel Size as Standard	550/60×22.5

Features

Full Length Chassis
MEC 9,000 Pump
Parabolic Sprung Drawbar
Hydraulic Brakes
Dynamic Lights
20” Door
Hydraulically Operated Heavy Duty Outlet Valve
Inverted Spreading Plate
One Blank Fill Point with 2” Wash Tap
One Complete 6” Quick Attach Fill Point
Two Blanked Off Fill Points
15ft of 6” Suction Hose
Band Spreader Ready Bracketry
550/60 x 22.5 Wheels

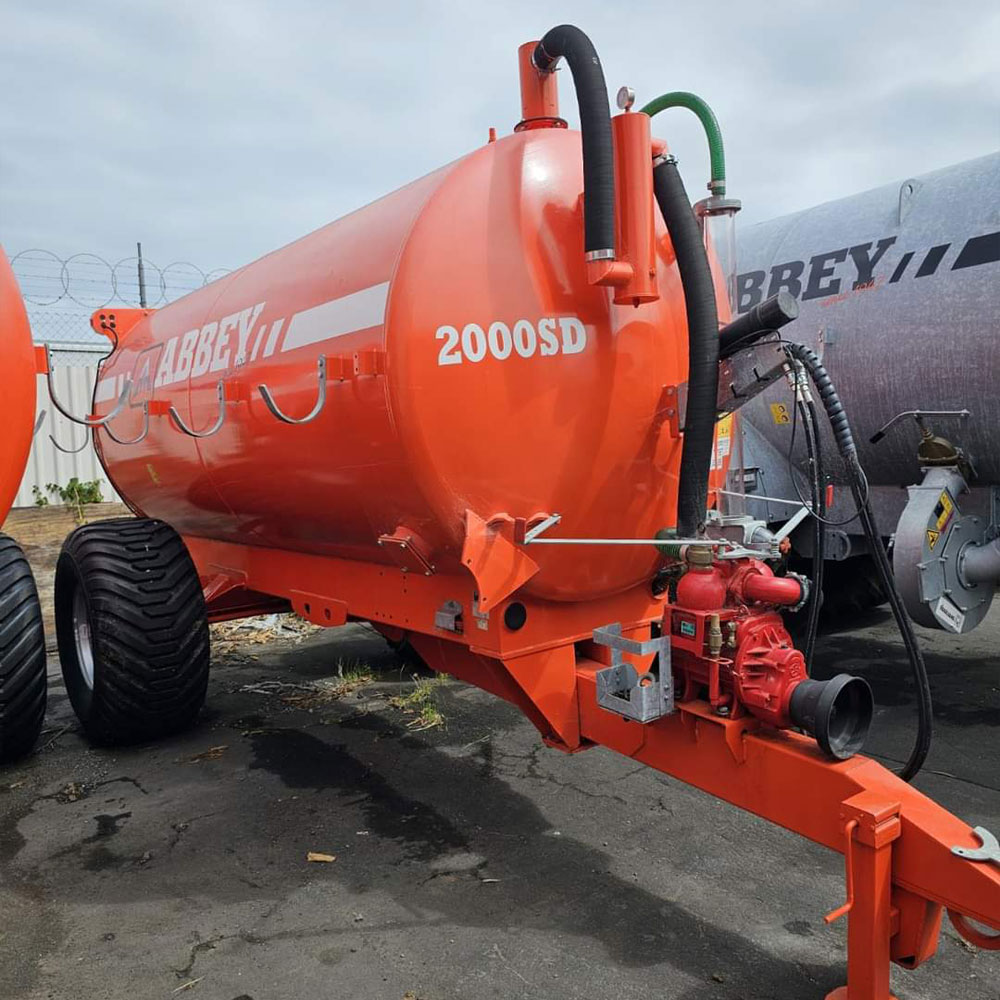

2000 Super Sprung Drawbar Tanker

Model	2000SD
Approx. Capacity (gl)
Litre Capacity (L)	9120
Dished End Size (inch)
Barrel Length (m)
Overall Width (mm)
Approx. Overall Height (mm) (18” hook)
Overall Length Without Splash Plate (mm)
Pump Capacity (L/min)
Standard Hose Length (m)
Back Door Size (inch)	20
Unladen Weight (kg)
Wheel Size as Standard	550/60×22.5
