Standard Tankers
Built for Performance and Precision
Explore the robustness and reliability of our Standard Tankers, engineered to meet diverse agricultural needs. Ranging from 4,000L (900 gal) to 9,000L (2,000 gal), these tankers are built to the highest quality materials, including heavy-duty barrels and Battioni Pagani pumps. Each model is equipped with advanced features like hydraulic brakes, LED lights, and a variety of pump options, ensuring optimal functionality tailored to your specific farming needs.
Technical Specification
1100 Super Vacuum Tanker
| Model | 1100 |
| Approx. Capacity (gl) | 1100 |
| Litre Capacity (L) | 4,710 |
| Dished End Size (inch) | 54 |
| Barrel Length (m) | 3.5 |
| Overall Width (mm) | 2230 |
| Approx. Overall Height (mm) (18” hook) | 2500 |
| Overall Length Without Splash Plate (mm) | 5440 |
| Pump Capacity (L/min) | 9000 |
| Standard Hose Length (m) | 4.58 |
| Back Door Size (inch) | 20 |
| Unladen Weight (kg) | 1600 |
| Wheel Size as Standard | 400R22.5 |
Features
- MEC 9,000 Pump
- Hydraulic Brakes
- Dynamic Lights
- 20” Door
- Hydraulically Operated Heavy Duty Outlet Valve
- Inverted Spreading Plate
- One Blank Fill Point with 2” Wash Tap
- One Complete 6” Quick Attach Fill Point
- Two Blanked Off Fill Points
- 15ft of 6” Suction Hose
- 550/60 x 22.5 Wheels

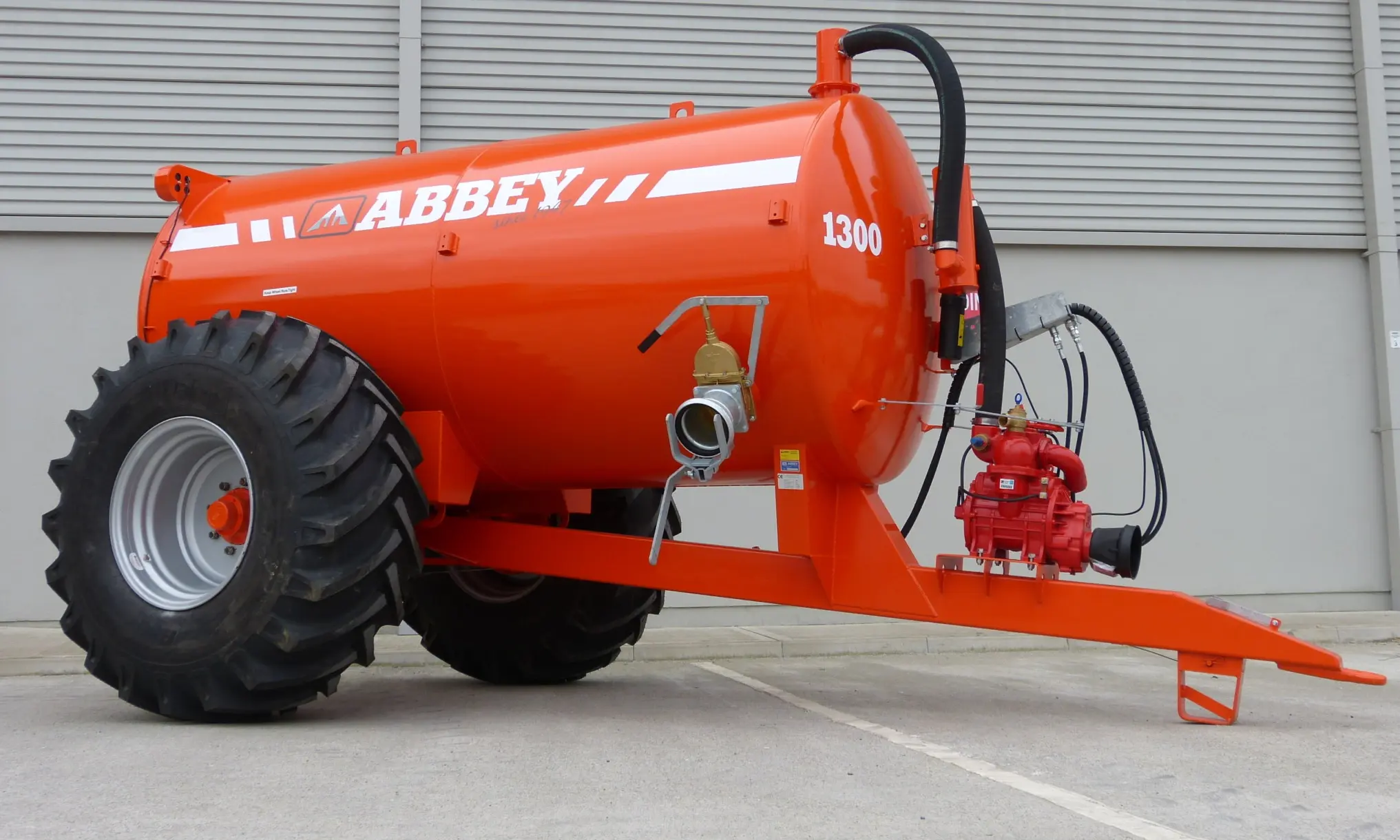

1300 Super Vacuum Tanker
| Model | 1300 |
| Approx. Capacity (gl) | 1300 |
| Litre Capacity (L) | 5780 |
| Dished End Size (inch) | 60 |
| Barrel Length (m) | 3.5 |
| Overall Width (mm) | 2500 |
| Approx. Overall Height (mm) (18” hook) | 2810 |
| Overall Length Without Splash Plate (mm) | 5465 |
| Pump Capacity (L/min) | 9000 |
| Standard Hose Length (m) | 4.58 |
| Back Door Size (inch) | 20 |
| Unladen Weight (kg) | 2100 |
| Wheel Size as Standard | 550/60×22.5 |
Features
- MEC 9,000 Pump
- Hydraulic Brakes
- Dynamic Lights
- 20” Door
- Hydraulically Operated Heavy Duty Outlet Valve
- Inverted Spreading Plate
- One Blank Fill Point with 2” Wash Tap
- One Complete 6” Quick Attach Fill Point
- Two Blanked Off Fill Points
- 15ft of 6” Suction Hose
- Band Spreader Ready Bracketry
- 550/60 x 22.5 Wheels
- *Note: Ballast Weights are required when adding Band Spreader

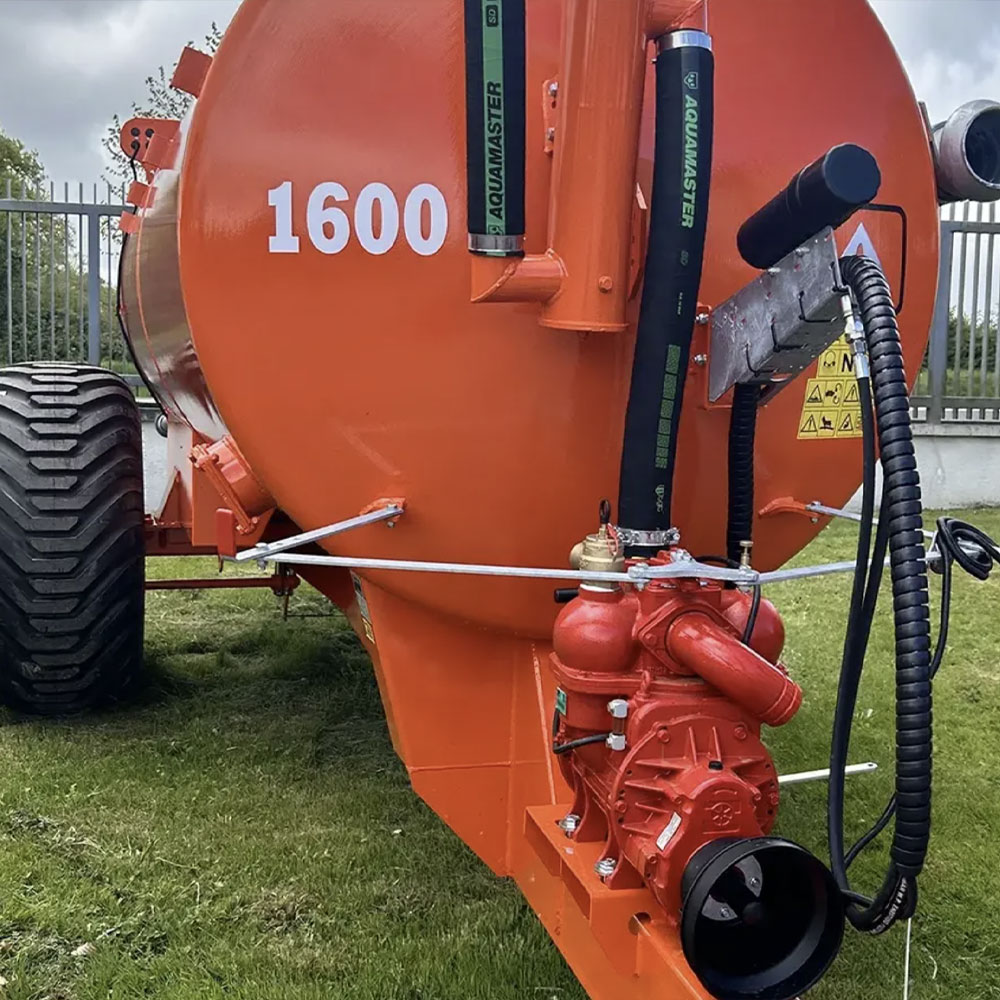

1600 Super Vacuum Tanker
| Model | 1600 |
| Approx. Capacity (gl) | 1600 |
| Litre Capacity (L) | 7020 |
| Dished End Size (inch) | 60 |
| Barrel Length (m) | 4.16 |
| Overall Width (mm) | 2530 |
| Approx. Overall Height (mm) (18” hook) | 2870 |
| Overall Length Without Splash Plate (mm) | 6120 |
| Pump Capacity (L/min) | 9000 |
| Standard Hose Length (m) | 4.58 |
| Back Door Size (inch) | 20 |
| Unladen Weight (kg) | 2400 |
| Wheel Size as Standard | 550/60×22.5 |
Features
- MEC 9,000 Pump
- Hydraulic Brakes
- Dynamic Lights
- 20” Door
- Hydraulically Operated Heavy Duty Outlet Valve
- Inverted Spreading Plate
- One Blank Fill Point with 2” Wash Tap
- One Complete 6” Quick Attach Fill Point
- Two Blanked Off Fill Points
- 15ft of 6” Suction Hose
- Band Spreader Ready Bracketry
- 550/60 x 22.5 Wheels
- *Note: Ballast Weights are required when adding Band Spreader
2000 Super Vacuum Tanker
| Model | 2000 |
| Approx. Capacity (gl) | 2000 |
| Litre Capacity (L) | 9120 |
| Dished End Size (inch) | 68 |
| Barrel Length (m) | 4.27 |
| Overall Width (mm) | 2530 |
| Approx. Overall Height (mm) (18” hook) | 3130 |
| Overall Length Without Splash Plate (mm) | 6185 |
| Pump Capacity (L/min) | 9000 |
| Standard Hose Length (m) | 4.58 |
| Back Door Size (inch) | 24 |
| Unladen Weight (kg) | 2600 |
| Wheel Size as Standard | 550/60×22.5 |
Features
- MEC 9,000 Pump
- Hydraulic Brakes
- Dynamic Lights
- 20” Door
- Hydraulically Operated Heavy Duty Outlet Valve
- Inverted Spreading Plate
- One Blank Fill Point with 2” Wash Tap
- One Complete 6” Quick Attach Fill Point
- Two Blanked Off Fill Points
- 15ft of 6” Suction Hose
- Band Spreader Ready Bracketry
- 550/60 x 22.5 Wheels
- *Note: Ballast Weights are required when adding Band Spreader
