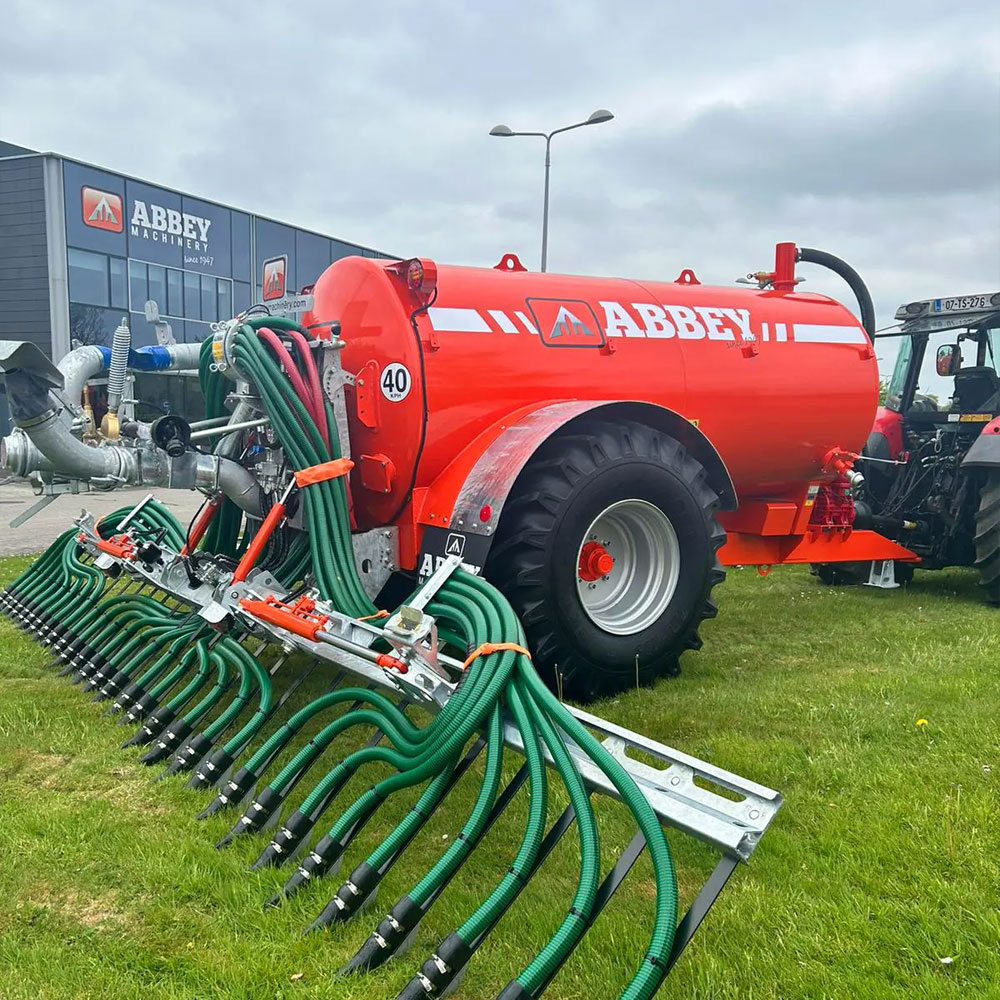

Premium Plus Recess Tankers
Superior Balance and Efficiency
Designed to tackle the most demanding tasks, with sustainability in mind. These tankers boast a sophisticated design featuring low diesel consumption, which significantly reduces operating costs while maintaining high performance. Equipped with 28.1R26 or 30.5R32 wheels, a full-length chassis, and a parabolic weight-sensing multi-leaf sprung drawbar, they ensure exceptional balance and low ground pressure. The integration of innovative technologies like a double trap system and advanced hydraulic controls not only enhances durability but also optimises operational efficiency, making these tankers a top choice for farmers prioritising eco-friendly practices and cost efficiency.
Model number refers to the approximate gallon capacity of a cylinder after recessing. Some tanks, especially larger models and those with attachments may exceed the permitted axle weight by law in your local jurisdiction. You are strongly advised to check with your local licensing authority.
Technical Specification
1600 Premium Plus Recess Tanker
| Model | 1600R |
| Approx. Capacity (gl) | 1600 |
| Litre Capacity (L) | 6,600 |
| Dished End Size (inch) | 60 |
| Barrel Length (m) | 4.5 |
| Overall Width (mm) | 2540 |
| Approx. Overall Height (mm) (18” hook) | 2940 |
| Overall Length Without Splash Plate (mm) | 6625 |
| Pump Capacity (L/min) | 9000 |
| Standard Hose Length (m) | 4.58 |
| Back Door Size (inch) | 20 |
| Unladen Weight (kg) | 2810 |
| Wheel Size as Standard | 28.1×26 |
Features
- Recessed LGP
- MEC 9,000 Pump
- Parabolic Sprung Drawbar
- Hydraulic 420 x 180 Brakes
- Dynamic Lights
- 24″ Door
- Hydraulically Operated Heavy Duty Outlet Valve
- Inverted Spreading Plate
- One Blank Fill Point with 2″ Wash Tap
- Two Complete 6″ Quick Attach Fill Points
- One blanked Off Fill Point
- Mudguards
- 15ft of 6″ Suction Hose
- Lights on Front Mudguards
- Stone Trap
- Air Brake Ready
- Band Spreader & Agri Pro Ready Bracketry
- With 800/65 R32 Wheels
2000 Premium Plus Recess Tanker
| Model | 2000R |
| Approx. Capacity (gl) | 2000 |
| Litre Capacity (L) | 9240 |
| Dished End Size (inch) | 68 |
| Barrel Length (m) | 4.61 |
| Overall Width (mm) | 2540 |
| Approx. Overall Height (mm) (18” hook) | 3200 |
| Overall Length Without Splash Plate (mm) | 6655 |
| Pump Capacity (L/min) | 9000 |
| Standard Hose Length (m) | 4.58 |
| Back Door Size (inch) | 24 |
| Unladen Weight (kg) | 3440 |
| Wheel Size as Standard | 28.1×26 |
Features
- Recessed LGP
- MEC 9,000 Pump
- Parabolic Sprung Drawbar
- Hydraulic 420 x 180 Brakes
- Dynamic Lights
- 24″ Door
- Hydraulically Operated Heavy Duty Outlet Valve
- Inverted Spreading Plate
- One Blank Fill Point with 2″ Wash Tap
- Two Complete 6″ Quick Attach Fill Points
- One blanked Off Fill Point
- Bolt-On Galvanised Mudguards
- 15ft of 6″ Suction Hose
- Lights on Front Mudguards
- Stone Trap
- Air Brake Ready
- Band Spreader & Agri Pro Ready Bracketry
- With 800/65 R32 Wheels
2250 Premium Plus Recess Tanker
| Model | 2250R |
| Approx. Capacity (gl) | 1600 |
| Litre Capacity (L) | 7020 |
| Dished End Size (inch) | 60 |
| Barrel Length (m) | 4.16 |
| Overall Width (mm) | 2530 |
| Approx. Overall Height (mm) (18” hook) | 2870 |
| Overall Length Without Splash Plate (mm) | 6120 |
| Pump Capacity (L/min) | 9000 |
| Standard Hose Length (m) | 4.58 |
| Back Door Size (inch) | 20 |
| Unladen Weight (kg) | 2400 |
| Wheel Size as Standard | 550/60×22.5 |
Features
- MEC 9,000 Pump
- Hydraulic Brakes
- Dynamic Lights
- 20” Door
- Hydraulically Operated Heavy Duty Outlet Valve
- Inverted Spreading Plate
- One Blank Fill Point with 2” Wash Tap
- One Complete 6” Quick Attach Fill Point
- Two Blanked Off Fill Points
- 15ft of 6” Suction Hose
- Band Spreader Ready Bracketry
- 550/60 x 22.5 Wheels
- *Note: Ballast Weights are required when adding Band Spreader
2500 Premium Plus Recess Tanker
| Model | 2500R |
| Approx. Capacity (gl) | 2000 |
| Litre Capacity (L) | 11,260 |
| Dished End Size (inch) | 72 |
| Barrel Length (m) | 4.88 |
| Overall Width (mm) | 2610 |
| Approx. Overall Height (mm) (18” hook) | 3300 |
| Overall Length Without Splash Plate (mm) | 6900 |
| Pump Capacity (L/min) | 11,000 |
| Standard Hose Length (m) | 6.10 |
| Back Door Size (inch) | 24 |
| Unladen Weight (kg) | 4680 |
| Wheel Size as Standard | 30.5R32 |
Features
- Recessed LGP
- MEC 11,000 Pump
- Parabolic Sprung Drawbar
- Hydraulic 420 x 180 Brakes
- Dynamic Lights
- 24″ Door
- Hydraulically Operated Heavy Duty Outlet Valve
- Inverted Spreading Plate
- One Blank Fill Point with 2″ Wash Tap
- Two Complete 6″ Quick Attach Fill Points
- One blanked Off Fill Point
- Bolt-On Galvanised Mudguards
- 20ft of 6″ Suction Hose
- Lights on Front Mudguards
- Stone Trap
- Air Brake Ready
- Band Spreader & Agri Pro Ready Bracketry
- With 800/65 R32 Wheels
2750 Premium Plus Recess Tanker
| Model | 2750R |
| Approx. Capacity (gl) | 2750 |
| Litre Capacity (L) | 12,760 |
| Dished End Size (inch) | 72 |
| Barrel Length (m) | 5.46 |
| Overall Width (mm) | 2610 |
| Approx. Overall Height (mm) (18” hook) | 3300 |
| Overall Length Without Splash Plate (mm) | 7485 |
| Pump Capacity (L/min) | 11,000 |
| Standard Hose Length (m) | 6.10 |
| Back Door Size (inch) | 24 |
| Unladen Weight (kg) | 4580 |
| Wheel Size as Standard | 30.5R32 |
Features
- Recessed LGP
- MEC 11,000 Pump
- Parabolic Sprung Drawbar
- Hydraulic 420 x 180 Brakes
- Dynamic Lights
- 24″ Door
- Hydraulically Operated Heavy Duty Outlet Valve
- Inverted Spreading Plate
- One Blank Fill Point with 2″ Wash Tap
- Two Complete 6″ Quick Attach Fill Points
- One blanked Off Fill Point
- Bolt-On Galvanised Mudguards
- 20ft of 6″ Suction Hose
- Lights on Front Mudguards
- Stone Trap
- Air Brake Ready
- Band Spreader & Agri Pro Ready Bracketry
- With 800/65 R32 Wheels
3000 Premium Plus Recess Tanker
| Model | 3000R |
| Approx. Capacity (gl) | 3000 |
| Litre Capacity (L) | 13,840 |
| Dished End Size (inch) | 72 |
| Barrel Length (m) | 5.88 |
| Overall Width (mm) | 2610 |
| Approx. Overall Height (mm) (18” hook) | 3300 |
| Overall Length Without Splash Plate (mm) | 7895 |
| Pump Capacity (L/min) | 11,000 |
| Standard Hose Length (m) | 6.10 |
| Back Door Size (inch) | 24 |
| Unladen Weight (kg) | 4680 |
| Wheel Size as Standard | 800/65R32 |
Features
- Recessed LGP
- MEC 11,000 Pump
- Parabolic Sprung Drawbar
- Hydraulic 420 x 180 Brakes
- Dynamic Lights
- 24″ Door
- Hydraulically Operated Heavy Duty Outlet Valve
- Inverted Spreading Plate
- One Blank Fill Point with 2″ Wash Tap
- Two Complete 6″ Quick Attach Fill Points
- One blanked Off Fill Point
- Bolt-On Galvanised Mudguards
- 20ft of 6″ Suction Hose
- Lights on Front Mudguards
- Stone Trap
- Air Brake Ready
- Band Spreader & Agri Pro Ready Bracketry
- With 800/65 R32 Wheels
