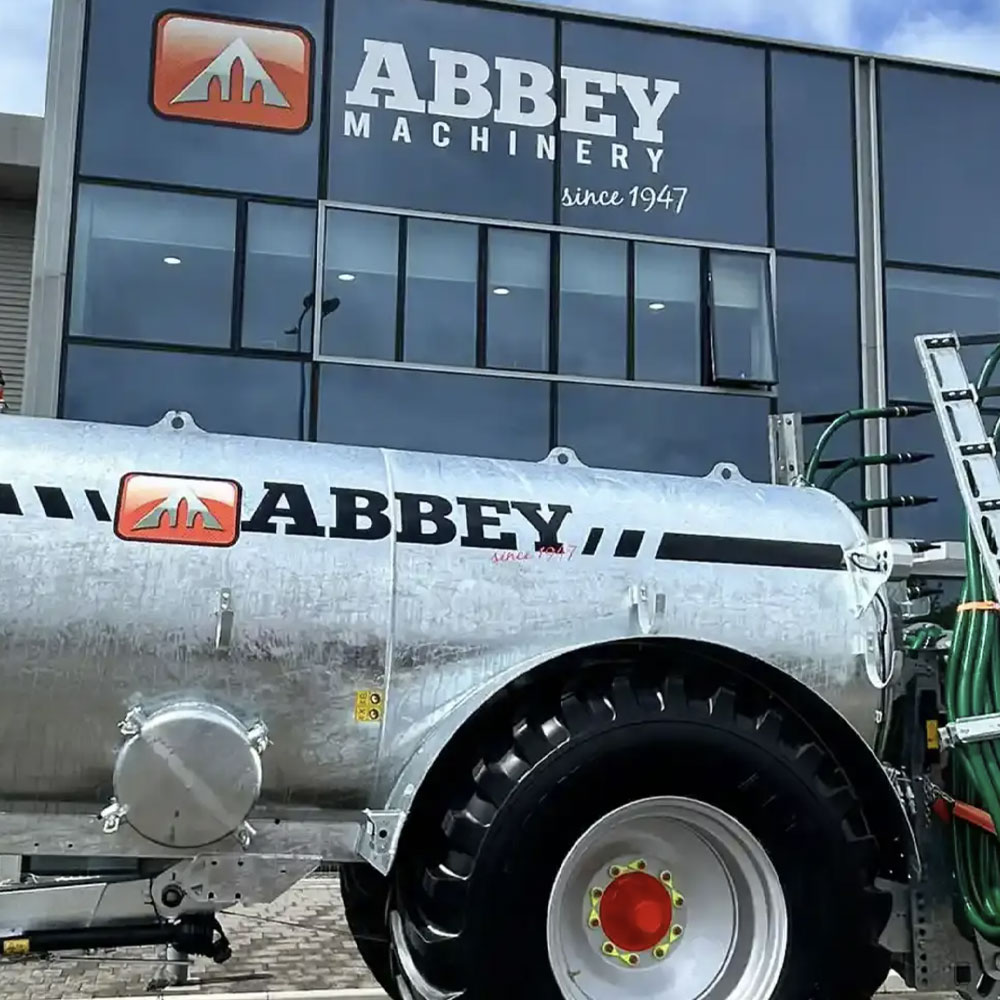

Premium Recess Tankers

Leading Durability

Experience unparalleled durability with Abbey Machinery’s Premium Recess Tanker range, tailored for even the most demanding agricultural tasks. These tankers, ranging from 7,010L (1,550 gal) to 9,240L (2,000 gal), incorporate cutting-edge technology including full-length chassis construction and weight-sensing sprung drawbars, significantly enhancing operational stability. The anti-movement internal baffles reduce surging, thereby improving the structural integrity and efficiency during transport. Newly added features such as galvanised mudguards, exhaust extensions, and readiness for Band Spreaders further enhance their functionality, making these tankers a top choice for farmers seeking reliability and performance in challenging environments.

Model number refers to the approximate gallon capacity of a cylinder before recessing. Some tanks, especially larger models and those with attachments may exceed the permitted axle weight by law in your local jurisdiction. You are strongly advised to check with your local licensing authority.

Technical Specification

1600 Premium Recess Tanker

Model	1600
Approx. Capacity (gl)	1600
Litre Capacity (L)	6,600
Dished End Size (inch)	60
Barrel Length (m)	4.16
Overall Width (mm)	2540
Approx. Overall Height (mm) (18” hook)	2940
Overall Length Without Splash Plate (mm)	6050
Pump Capacity (L/min)	9000
Standard Hose Length (m)	4.58
Back Door Size (inch)	20
Unladen Weight (kg)	2610
Wheel Size as Standard	28.1×26

Features

Recessed LGP
MEC 9,000 Pump
Parabolic Sprung Drawbar
Hydraulic Brakes
Dynamic Lights
20” Door
Hydraulically Operated Heavy Duty Outlet Valve
Inverted Spreading Plate
One Blank Fill Point with 2” Wash Tap
One Complete 6” Quick Attach Fill Point
Two Blanked Off Fill Points
15ft of 6” Suction Hose
Lights on Front Mudguards
Band Spreader Ready Bracketry
Bolt-On Galvanised Mudguards
With 750/70R26 A8 Wheels

*NEW* 1650 Premium Recess Tanker

Model	1650
Approx. Capacity (gl)	1650
Litre Capacity (L)	7,020
Dished End Size (inch)	60
Barrel Length (m)	4.5
Overall Width (mm)	2540
Approx. Overall Height (mm) (18” hook)	2980
Overall Length Without Splash Plate (mm)	6625
Pump Capacity (L/min)	9000
Standard Hose Length (m)	4.58
Back Door Size (inch)	20
Unladen Weight (kg)	2810
Wheel Size as Standard	28.1×26

Features

Recessed LGP
MEC 9,000 Pump
Parabolic Sprung Drawbar
150 Square Axle
420 x 180 Brakes
Dynamic Lights
Stone Trap
Side Mounted 20” Door
Hydraulically Operated Heavy Duty Outlet Valve
Inverted Spreading Plate
One Blank Fill Point with 2” Wash Tap
Two Complete Quick Attach Fill Points
One Blanked Off Fill Points
Mudguards
15ft of 6” Suction Hose
Lights on Front Mudguards
Fully Galvanised
800/65 xR32 (30.5 R32 Wheels)

2000 Premium Recess Tanker

Model	2000
Approx. Capacity (gl)	2000
Litre Capacity (L)	9240
Dished End Size (inch)	68
Barrel Length (m)	4.61
Overall Width (mm)	2540
Approx. Overall Height (mm) (18” hook)	3200
Overall Length Without Splash Plate (mm)	6655
Pump Capacity (L/min)	9000
Standard Hose Length (m)	4.58
Back Door Size (inch)	24
Unladen Weight (kg)	3440
Wheel Size as Standard	28.1×26

Features

Recessed LGP
MEC 9,000 Pump
Parabolic Sprung Drawbar
Hydraulic Brakes
Dynamic Lights
20” Door
Hydraulically Operated Heavy Duty Outlet Valve
Inverted Spreading Plate
One Blank Fill Point with 2” Wash Tap
One Complete 6” Quick Attach Fill Point
Two Blanked Off Fill Points
15ft of 6” Suction Hose
Band Spreader Ready Bracketry
Bolt-On Galvanised Mudguards
With 750/70R26 172 A8 Wheels

*NEW* 2050 Premium Recess Tanker

Model	2050
Approx. Capacity (gl)	2050
Litre Capacity (L)	9240
Dished End Size (inch)	68
Barrel Length (m)	4.61
Overall Width (mm)	2540
Approx. Overall Height (mm) (18” hook)	3200
Overall Length Without Splash Plate (mm)	6655
Pump Capacity (L/min)	9000
Standard Hose Length (m)	4.58
Back Door Size (inch)	24
Unladen Weight (kg)	3440
Wheel Size as Standard	28.1×26
